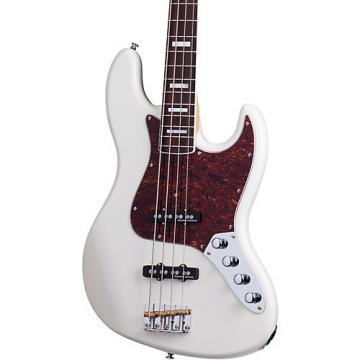

Schecter Guitar Research Diamond-J Plus Electric Bass Guitar Ivory

Place of Origin:
USA
Model Number:

CUSTOMGUITAR 209

Min.Order Quantity:
One Set
Price:
Negotiable
Packaging Details:
Hardshell Case of Schecter Guitar Research Diamond-J Plus Electric Bass Guitar Ivory
Delivery Time:
Please contact customer service
Payment Terms:
paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
Supply Ability:
209
Contact Now


Product Description

For 2015 Schecter took the Diamond-J shape and redesigned it from the ground up to have a Vintage look while having top of the line electronics, versatile tone possibilities, and modern construction.

Starting with the Seymour Duncan Pickups, the Bridge & Neck are the Quarter Pound J "SJB-3". Developed for the bassist who needs the slammin' output of the Hot but with even stronger attack. The quarter-inch pole pieces and intense windings deliver a full response with great sustain.

The Master Volume knob features a "Phase Switch" push-pull pot wired for the Quarter Pound J Bridge pickup. In down position the Seymour Duncan ˜SJB-3' is wired ˜in phase' for normal tone when combined with the Neck pickup. In up position the bridge pickup is wired ˜Out-of-Phase' when combined with the Neck pickup. This produces an original nasally honky tone with lots of emphasis on the Midrange. Previously a difficult tone to work with because the Low-end is cut until now since adding the Seymour Duncan 2-Band Active EQ with 18v system the Bass can be boosted creating a very unique tone that can be used for tailoring your original sound.

Schecter was looking for the most versatile tone possibilities so we developed this bass with a 4-Way Rotary Pickup Selector Switch. This gives you the option to combine the Bridge and Neck pickup in series or in parallel.

Schecter took these wiring features and then added the Seymour Duncan 2-Band Active EQ with 18v system for even more tone shaping versatility. This enables the player to add or subtract EQ at center frequencies voiced specifically for electric bass. The lows are deep, clear, and tight. There are two treble ˜dip switch' frequency centers to choose from. The lower setting is perfect for adding growl and bite to traditional P, J, and MM tones. The higher setting provides crystal clear top end to modern-sounding, full-frequency bass tones with punishing clarity without any brittleness.

After they got the electronics tricked out they worked on the Construction of the bass.

The bolt-on neck joint was reshaped and contoured for smoother access to the higher frets. The neck is bolted down with 6 bolts for a stronger neck/body bond. Carbon fiber reinforcement rods are used in the neck to strengthen the neck relief and preventing any neck shifting. The fretboard features a 12" radius adding a modern roundness to the feel. The Wilkinson WBBC bridge was customized with a string-thru body design for a vintage look & sound and modern string-thru for added string resonance & increased sustain. Precision and durability with classic styling make the Grover 142 series Vintage bass tuners ideal for a vintage look and modern functions. The die cast housing is a sturdy foundation for maintaining center lines of the worm and gear. A fixed bearing surface in the housing creates a smooth tuning surface for easy tuning and 22:1 gear ratio. The safety string post and "elephant ear" button provide utility and a vintage look.


Model Name: Diamond-J Plus Item Number: 2862 Guitar Colors: Aged Natural (AN) Country of Origin: South Korea Dexterity: Right Handed Construction: 6 Bolt-on Body Material: Swamp Ash Top Contour: Flat Top Neck Material: Maple w/ Carbon Fiber Reinforcement Rods Fretboard Material: Maple Binding: Black 1-ply Inlays: Ebony Blocks Scale: 34" (863mm) Frets: 20 Narrow X-Jumbo Fretboard Radius: 12" (305mm) Neck Shape: Thin ˜C' Thickness: @ 1st Fret- .826" (21mm)/ @ 12th Fret- .905" (23mm) Nut: Graph Tech XL Black Tusq Nut Width: 1.496" (38mm) Truss Rod: 2-Way Adjustable Rod w/ 5/32" (4mm) Allen Nut Bridge Pickup: Seymour Duncan Quarter Pound J SJB-3 Neck Pickup: Seymour Duncan Quarter Pound J SJB-3 Controls: Master Volume (Phase Push-Pull)/4-Way Rotary Pickup Selector Switch/Active Seymour Duncan 2-Band 'STC-2S-B0' EQ Battery Compartment: 18-volt w/Screw Plate Hardware Color: Chrome Bridge: Wilkinson Bass WBBC w/Custom String Thru Body Tuners: Grover Vintage Bass 142 Series Knobs: Metal Knurled w/ Set Screw

Order today!

Custom Guitar's Friend Gold Coverage

Gold Coverage goes above and beyond the manufacturer's warranty to protect your gear from unexpected breakdowns, accidental damage from handling and failures. This plan covers your product for one, two, three or up to five years from your date of purchase, costs just pennies per day and gives you a complete "no-worry" solution for protecting your investment.

Gold Coverage Includes:

Unexpected and unintentional spills, drops and cracks Normal wear and tear Power surges Dust, internal heat and humidity

Other plan features include:

For products over $200, No Lemon Policy applies. If it fails for the same defect 3 times, it is replaced on the 4th breakdown. (Does not apply to failures due to drops, spills, and cracks) For products under $200 experiencing the above failures, a Custom Guitar's Friend gift card will be issued for the full price of the product + tax. Shipping fees covered if required for repair or replacement Plans are transferable in the event merchandise is sold Plans are renewable on new gear

*Limitations and exclusions apply. See terms and conditions for program details

Term for New Gear begins on date of purchase but does not replace the store return policy or manufacturer coverage.

Displaying reviews 1-2

Back to top

there are things I always expected from a jazz bass that I never could quite achieve with a jazz bass.ie wide tone capability, crisp highs and growling bottom at the same time. There are so many possibilities with this bass. super sound and quality. the semour duncan pickups are a perfect addition. .I bought an open box that was described as having tiny scratches on the pickguard. I could find none. fit and finish is next to perfection. I have never played a better bass in my life except for maybe a rick. you can't go wrong with this one. schecter has a winner here. price incredible for this quality!
Schecter Guitar Research Diamond-J Plus Electric Bass Guitar Ivory
.Great bass. As close to a Fender Elite J bass as you will find at less than half the price !
Schecter Guitar Research Diamond-J Plus Electric Bass Guitar Ivory
.
